Description

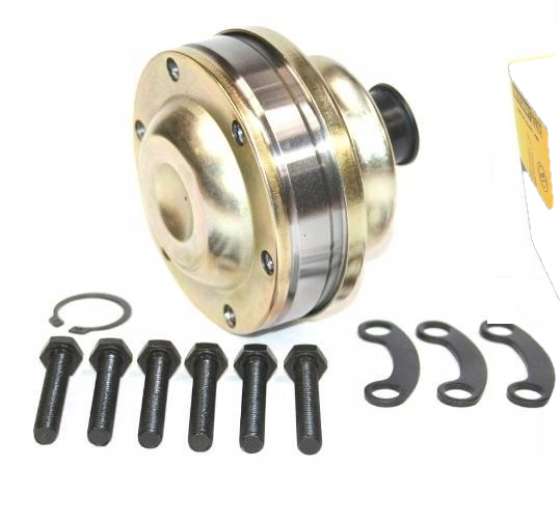

JOINT:
- number of spline teeth: 25
- outer diameter joint: 100mm (98mm under the cap)
- joint width: 40mm
- length of splined teeth: 42mm
- internal diameter between teeth: 28mm
- hole diameter: 8mm
- number of holes: 6
- pitch diameter: 86mm (screw spacing)
COVER:
- diameter of the large hole A: 100mm
- diameter of small hole B: 28mm
- plate height Hm: 42mm
- total height H: 152mm
OE: 52099497AD, 52099498AD, 52111591AB,
JEEP Grand Cherokee (WJ/WG) 1998-2004
PONTIAC Transport
BUICK Rendezvous
front shaft joint - from the axle side
